Membrane Switches for Emergency Lighting | Custom LED Emergency Light Control Panels – TUOYUE

TUOYUE manufactures integrated membrane keypads for emergency LED lights & automatic emergency lighting drivers. Built-in status indicator LEDs, tactile test buttons, wide temperature resistance, OEM & ODM custom service. Request emergency light HMI quotation.

Custom Membrane Switch & Control Panel Solutions for Emergency Lighting Equipment

Manufacturers of emergency LED lights, emergency lighting drivers and automatic backup lighting systems require stable, safety-certified user interfaces to display power, charging and fault status. Conventional keypads often suffer open circuits from repeated bending, unstable signal transmission and premature ageing after long-term static standby. As a professional HMI and membrane switch manufacturer, TUOYUE develops dedicated membrane switch assemblies tailored for emergency lighting devices. Our integrated keypad units combine tactile test buttons and multi-color status indicator LEDs to form a complete compact control interface for emergency light modules.

Core Features of Emergency Lighting Membrane Keypads

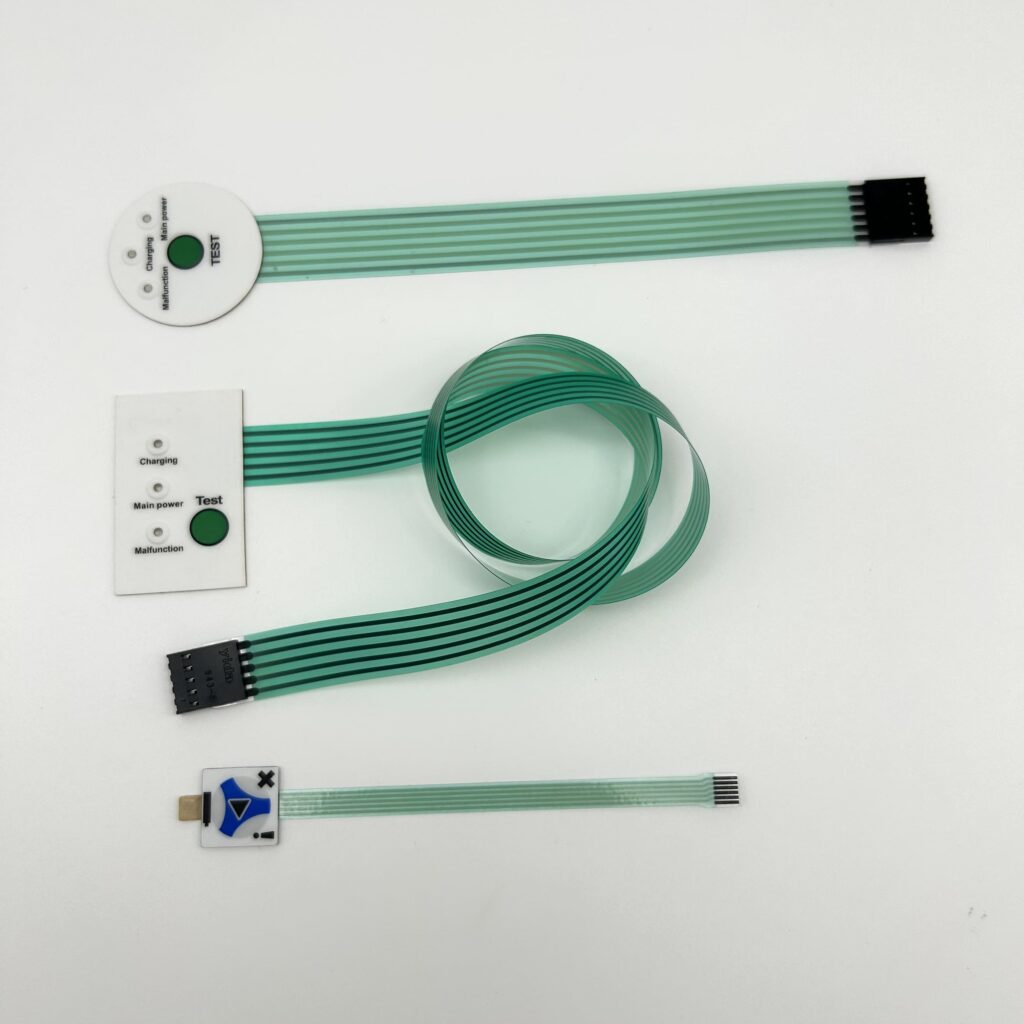

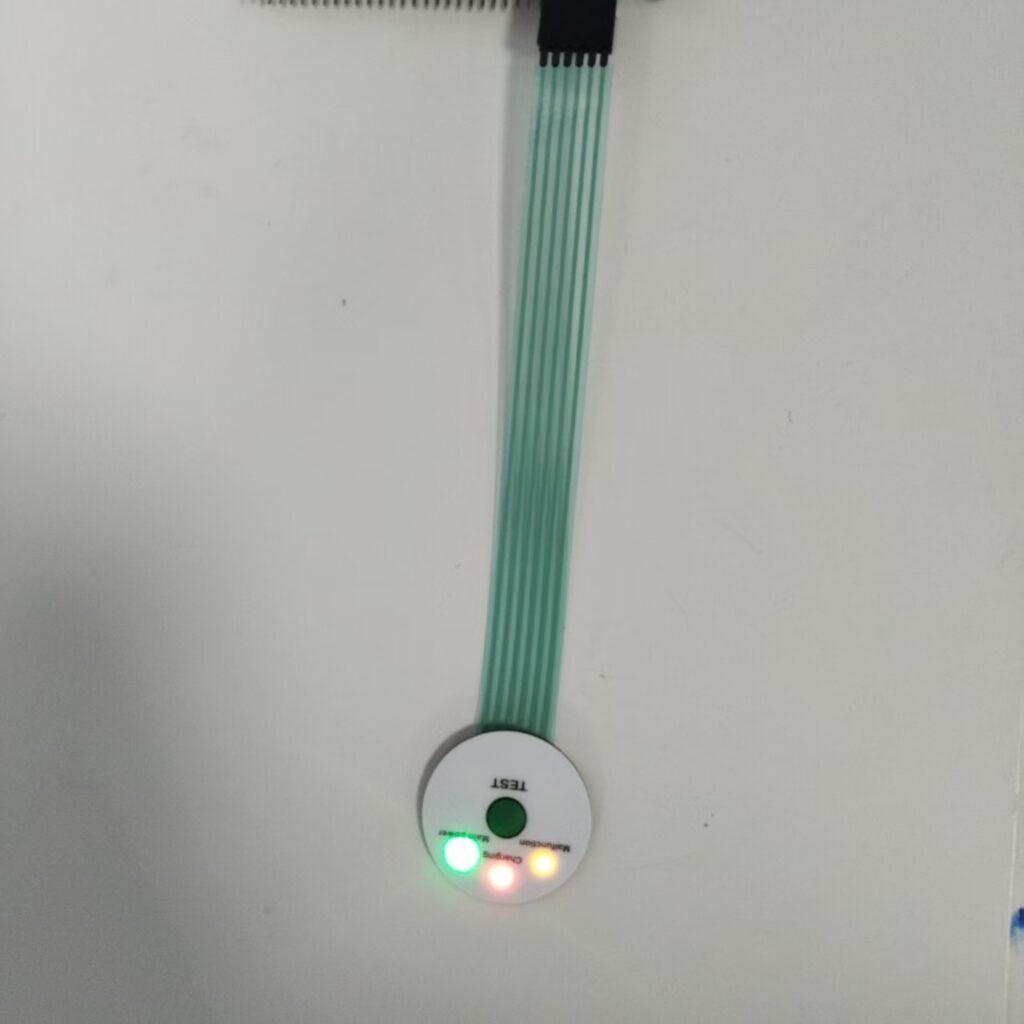

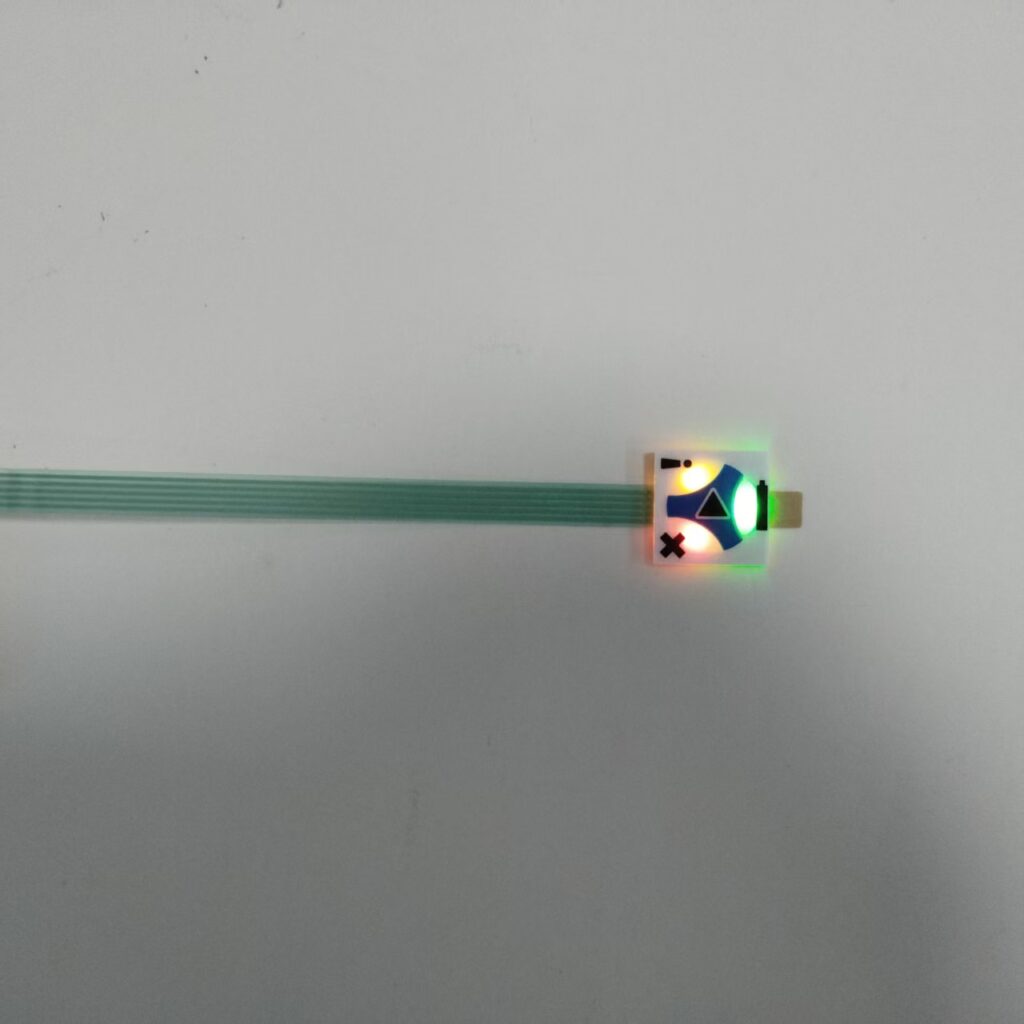

  • Integrated LED Status Indicator Design Pre-installed multi-color SMD LEDs display Main Power, Charging and Malfunction alarms in one compact panel. Custom LED window layout, bi-color or side-view LED options are available to match standard emergency light functional logic.
  • High Reliability for Safety-Critical Equipment Strict electrical performance parameters: contact resistance ≤80Ω, insulation resistance ≥100MΩ. Rated for over 1,000,000 actuations with bounce time below 15ms, preventing false signal recognition on safety lighting systems.
  • Wide Temperature & Humidity Adaptability Suitable for indoor and semi-outdoor installation environments. Operating temperature range: -25℃ ~ +60℃, storage temperature: -25℃ ~ +70℃, withstand relative humidity up to 90% RH. Anti-static, water and chemical resistant overlay protects against dust and condensation.
  • Reinforced Anti-Bending Flexible Circuit Protective single-sided adhesive reinforces FFC/PET flexible cable outlets. Effectively avoids track breakage during assembly bending and housing installation, significantly lowering after-sales failure rates.

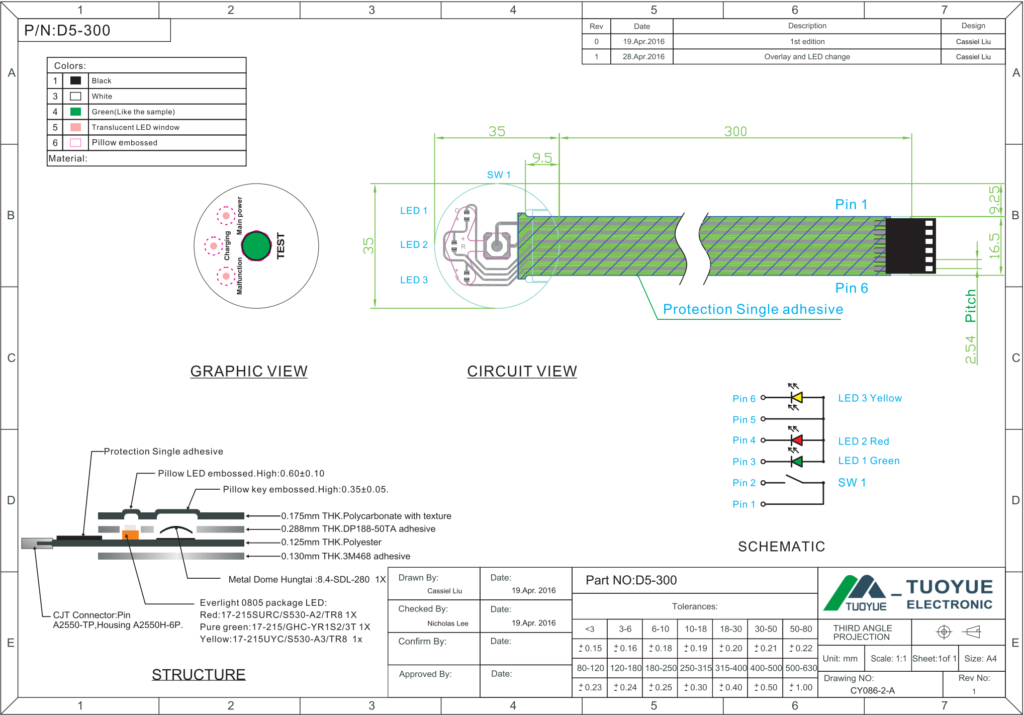

  • Fully Customizable Layout & Structure We accept CAD, AI and vector artwork for custom development: • Pillow embossed tactile buttons or flat capacitive circuits • Custom Pantone color matching, matte or textured PC/PET overlays • Multiple connector pitch options: 1.0mm, 1.25mm, 2.54mm with 2~30 pins • Optional glass, acrylic decorative front panels

Extended Supporting Services

Beyond standalone membrane switches, we provide coordinated auxiliary components: Industrial 3M adhesive lamination, sealing foam gaskets. We can also coordinate PCBA, wiring harness and enclosure suppliers via our one-stop integrated assembly service for complete emergency light control units.

Typical Application Scenarios

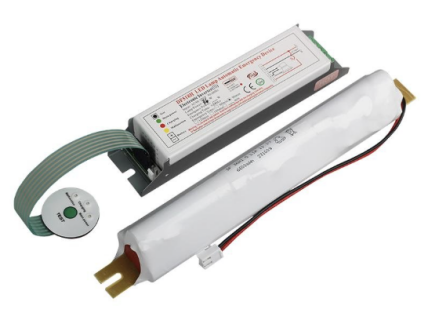

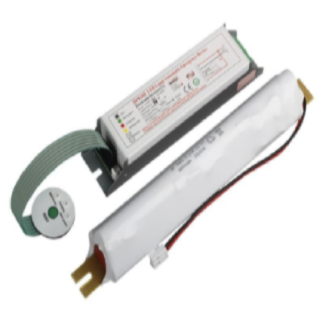

LED emergency exit lights and emergency backup lamps • Automatic emergency lighting drivers and battery backup modules • Commercial building, parking and tunnel safety lighting fixtures • Industrial facility emergency evacuation lighting systems

TUOYUE Manufacturing Strength

We have mature long-term experience serving emergency light OEM manufacturers. The workflow includes drawing evaluation → prototype sampling → environmental performance testing → mass production delivery. Small-batch prototype trials and scalable large-volume orders are both supported. All materials comply with RoHS export standards.
If you produce emergency LED lighting fixtures and need reliable custom membrane switch control panels, send your technical drawings and functional requirements to TUOYUE. We deliver optimized HMI solutions for your safety lighting equipment.
