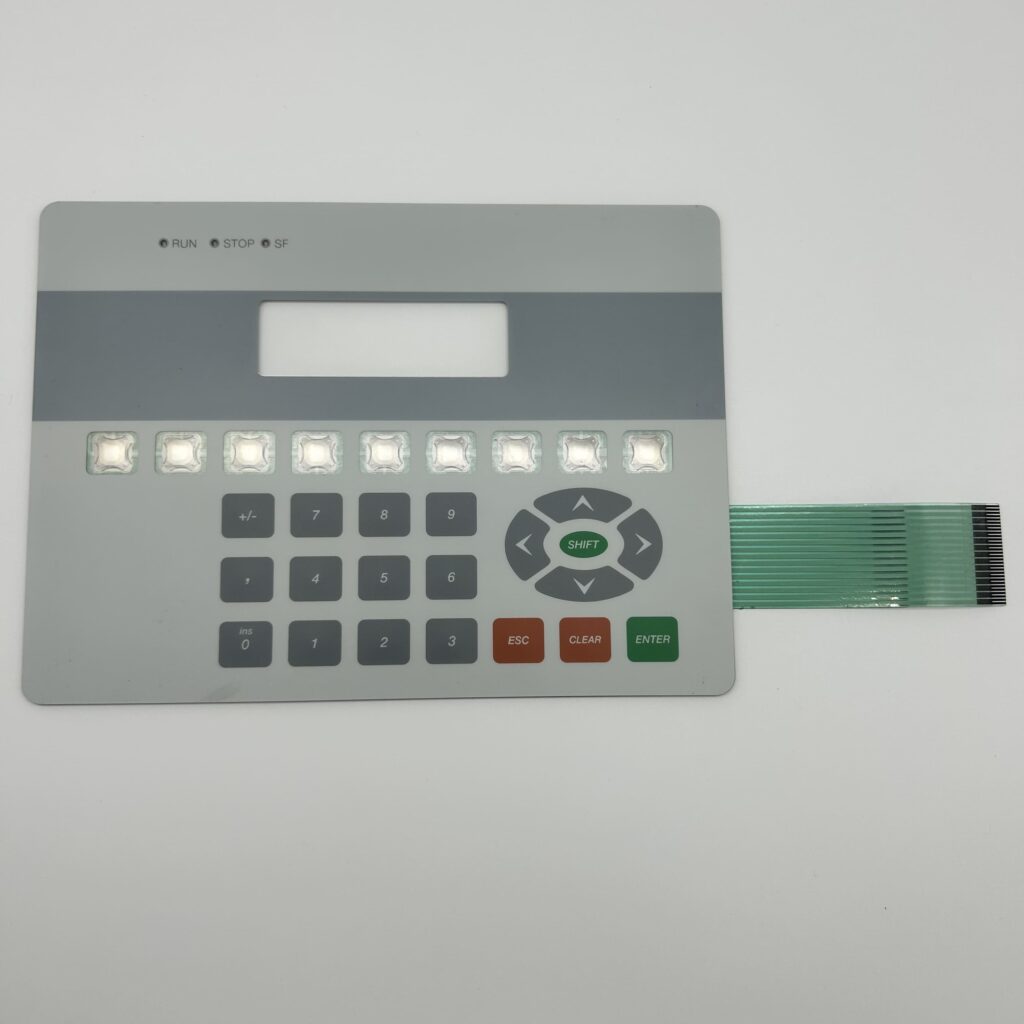

Tactile Membrane Switches and Keypads

TUOYUE Custom Dome Prototype & Flexible Design Support

  • 1.Industrial workshop equipment operated by staff wearing thick protective gloves: We recommend large-size metal domes with high actuation force and crisp, heavy tactile feedback. Clear click feeling guarantees accurate operation even with glove barriers.
  • 2.Elderly-oriented medical care devices, nursing control panels: Light-load low-force metal domes are the top pick, requiring minimal pressing pressure to reduce fatigue for senior users. TUOYUE Custom Dome Prototype & Flexible Design Support

Tactile preference varies drastically between brands and end users, which is why TUOYUE’s professional HMI engineering team provides one-on-one dome matching consultation for all OEM/ODM membrane switch projects. During your prototype validation phase, we manufacture multiple membrane keypad test samples fitted with different metal dome specifications (varying size, actuation force and click ratio). Your R&D and procurement teams can conduct real hands-on tactile testing to lock in the most satisfying dome solution before mass production.
A major advantage of metal dome design lies in its flexible adjustability throughout your whole product lifecycle. Unlike fixed circuit structures, metal domes can be replaced or upgraded easily during design revisions, and even after formal mass production launches. You will never be restricted to a single dome specification if you adjust your equipment’s operation experience later. Whether you need small round domes for compact membrane keyboards or large square domes for industrial control HMI panels, we can adjust dome configurations freely without reworking your entire membrane circuit layout.

Metal Dome Core Specifications & Custom Options

Metal Dome Size, Force & Lifespan Parameters | TUOYUE Membrane Switch HMI
Browse full metal dome specs including size, shape, actuation force, cycle life & dimple design. TUOYUE supplies customized metal domes for all membrane keypads & industrial control panels. Request technical datasheets now.
Main Content

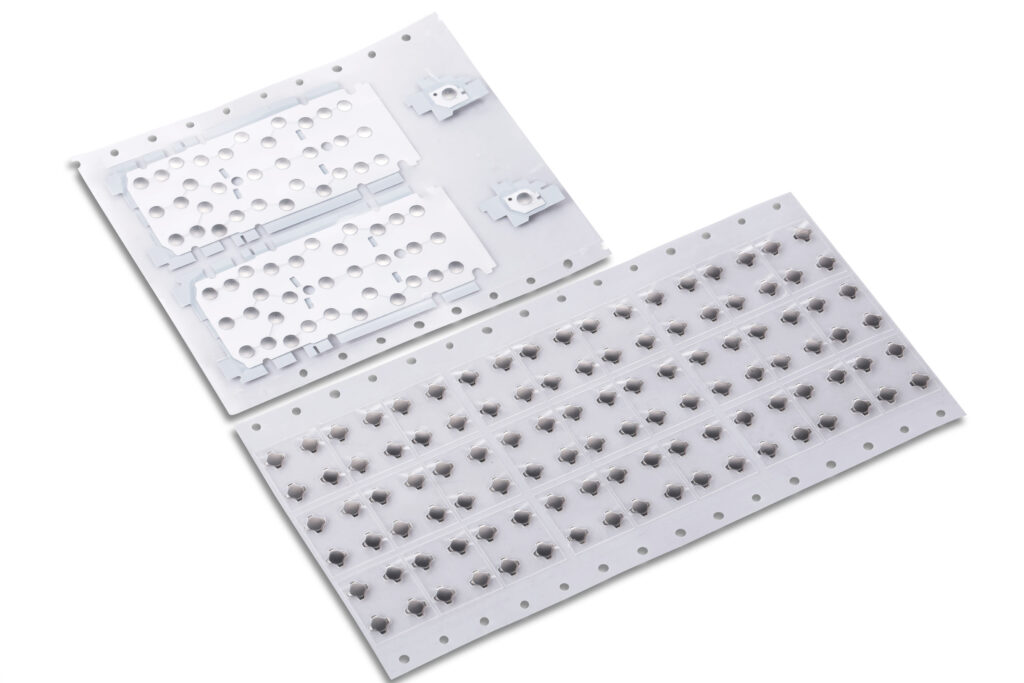

Metal domes are the core tactile conductive components built inside all membrane switches, membrane keypads and flexible HMI control panels. The performance of your finished touch interface is directly determined by dome specifications. TUOYUE provides a full spectrum of configurable dome parameters tailored to diverse industrial, medical, catering and automotive equipment projects. Below breaks down all customizable dome characteristics for your engineering reference.

1. Dimension Specifications (Diameter & Overall Height)

Metal dome outer diameter must match the reserved key window size on your graphic overlay and printed circuit layer, so key layout design defines the suitable dome dimension. Our standard dome diameter series covers 6mm to 20mm to fit compact handheld devices and large industrial control buttons correspondingly. Dome vertical height varies proportionally with its diameter, with a height range spanning 0.25mm to 1.45mm. We can adjust customized dimensional tolerances to match ultra-thin or heavy-duty membrane keyboard assembly demands.

2. Multiple Shape Selections

We offer mature standard dome shapes to cover most conventional HMI layout demands, plus fully custom forming services for special-shaped membrane switch buttons:

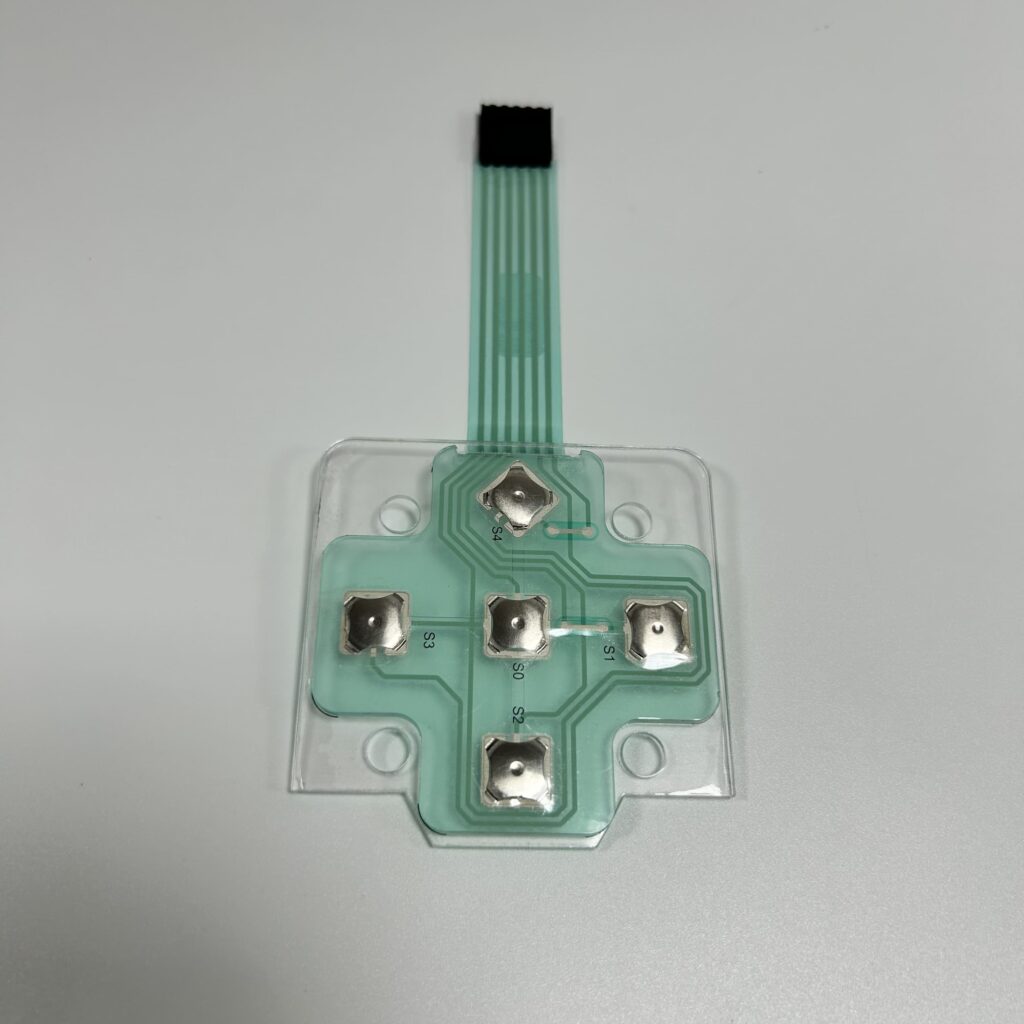

  • Four-legged metal domes
  • Triangular metal domes

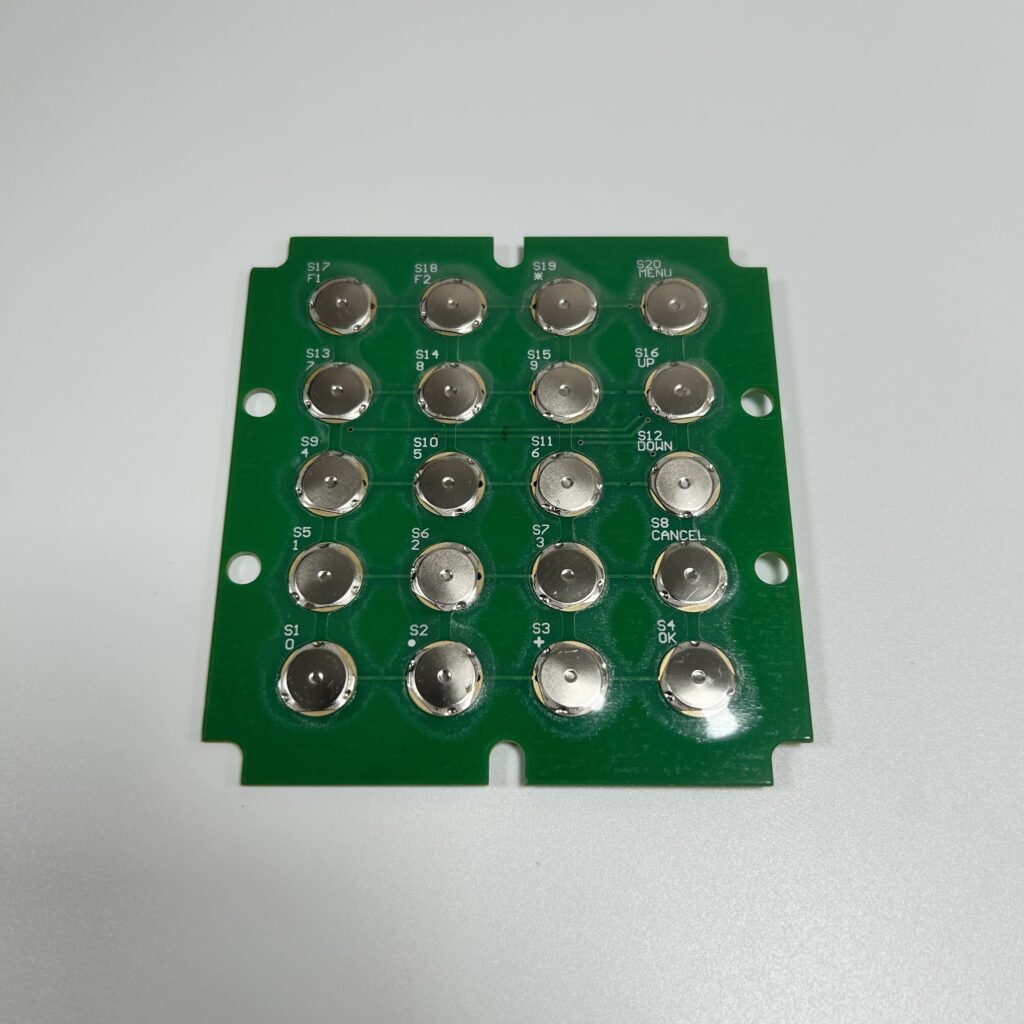

  • Standard round domes

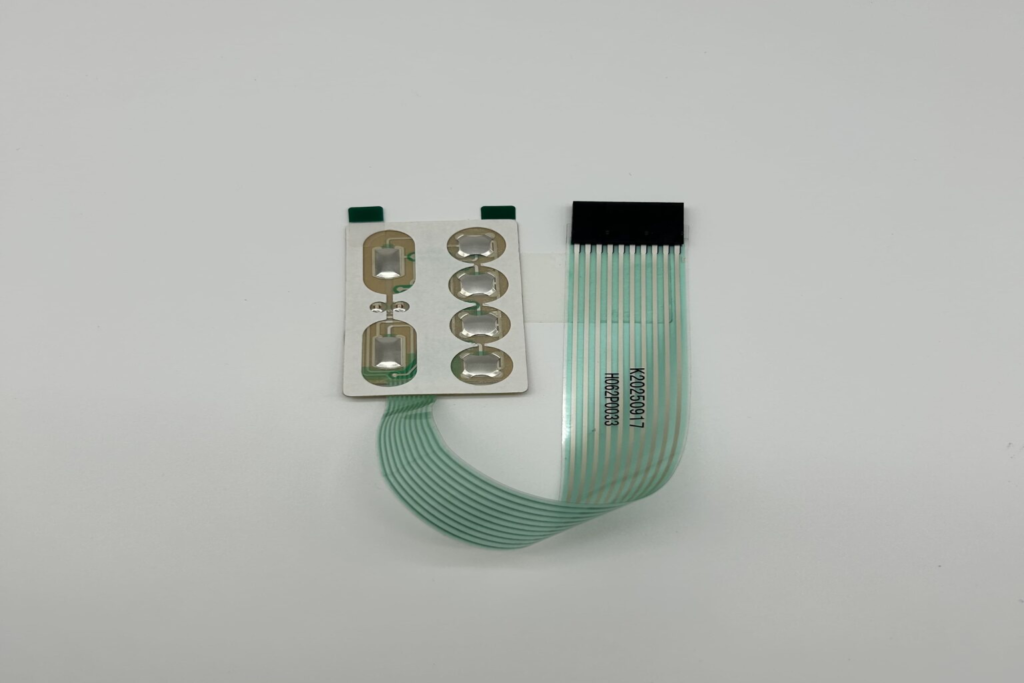

  • Oblong rectangular domes
  • Fully custom contour domes for unique panel layouts

3. Tunable Actuation Force (Core Tactile Parameter)

Actuation force stands as the most decisive factor for comfortable key operation experience. It refers to the minimum downward pressure required to collapse the dome and create stable circuit conduction, measured in gram weight. Our adjustable actuation force range stretches from lightweight 40g up to heavy-duty 2250g. Engineers can select low-force specs for elderly nursing equipment, medium weight for daily commercial POS membrane keypads, and high actuation force for glove-operated industrial machinery HMIs.

4. Extended Service Lifespan Cycles

Modern upgraded metal dome materials and stamping craft have greatly boosted long-term durability compared to early-generation dome parts. Conventional standard domes support a minimum of 1,000,000 reliable press cycles for general consumer and commercial equipment. For high-frequency operation scenarios such as factory weighing scales and all-day canteen payment membrane keyboards, we supply reinforced heavy-duty domes certified for over 5,000,000 presses. No matter your equipment’s daily operation frequency, TUOYUE can match dome lifespan that eliminates premature tactile failure risks.

5. Dimpled vs Non-Dimpled Dome Structure

Two surface structure types are available for different electrical stability requirements: dimpled metal domes and smooth non-dimpled domes. A tiny central concave indent (dimple) can be fabricated on the dome’s top surface, with maximum depth reaching 0.2mm. This central dimple optimizes contact consistency between the dome and silver ink circuit traces, effectively suppressing electrical bounce signals during repeated pressing. It delivers more steady signal transmission for precision instruments and sensitive control modules. Non-dimple smooth domes are recommended for cost-sensitive standard equipment without strict anti-jitter electrical requirements.
